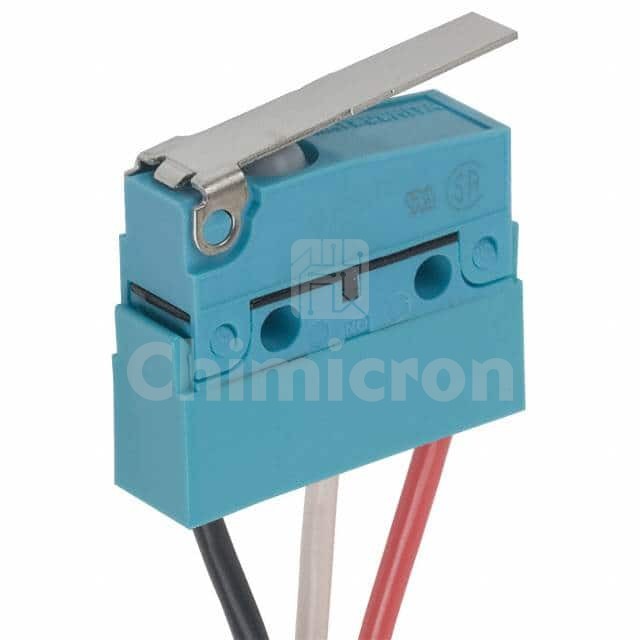

ABS1612519

Image is for reference, please contact us to get the real picture

Manufacturer Part

ABS1612519

Manufacturer
Panasonic
Description
SWITCH SNAP ACT SPDT 100MA 125V
Category
Switches
Family
Snap Action, Limit Switches
Series
-
InStock
0
Datasheets Online
ABS1612519 PDF
Inquiry
  • Series:ABS
  • Package:Bulk
  • Part Status:Active
  • Circuit:SPDT
  • Switch Function:On-Mom
  • Current Rating (Amps):100mA (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Lever, Straight
  • Mounting Type:Chassis Mount
  • Termination Style:Wire Leads
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Features:-
  • Operating Force:55gf
  • Release Force:3.500gf
  • Pretravel:0.110" (2.8mm)
  • Differential Travel:0.031" (0.8mm)
  • Overtravel:0.047" (1.2mm)
  • Operating Temperature:-40°C ~ 85°C
Shipping Delivery period For in-stock parts, orders are estimated to ship out in 3 days.
We ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below couriers you chose.
DHL Express, 3-7 business days
DHL eCommerce,12-22 business days
FedEx International Priority, 3-7 business days
EMS, 10-15 business days
Registered Air Mail, 15-30 business days
Shipping rates Shipping rates for your order can be found in the shopping cart.
Shipping option We provide DHL, FedEx, UPS, EMS, SF Express, and Registered Air Mail international shipping.
Shipping tracking We will notify you by email with tracking number once order is shipped.
You can also find the tracking number in order history.
Returning / Warranty Returning Returns are normally accepted when completed within 30 days from date of shipment,please contact customer service for a return authorization.
Parts should be unused and in original packaging.
Customer has to take charge for the shipping.
Warranty All purchases come with a 30-day money-back return policy, plus a 90-day warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation

Recommendation for You

Image Part Number Description Stock Unit Price Buy
4HS109-318N

4HS109-318N

Honeywell Sensing and Productivity Solutions

HS HERMETICALLY SEALED BASIC SW

In Stock: 0

$215.63700

83160713

83160713

Crouzet

SNSW 6A POSBRK SIM ROLLER

In Stock: 0

$9.44700

ABV1610513

ABV1610513

Panasonic

SWITCH SNAP ACTION SPDT 3A 250V

In Stock: 46

$8.90000

D2HW-C203M

D2HW-C203M

Omron Electronics Components

SWITCH SNAP SPST-NO 100MA 125V

In Stock: 0

$3.98350

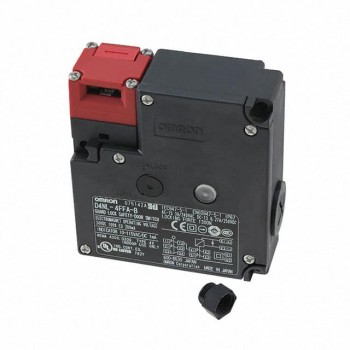

D4NL-4FFA-B-NPT
