Name: 2N5060RLRAG
Brand: Rochester Electronics
SKU: 2N5060RLRAG
Rating: 5.0 (99 reviews)

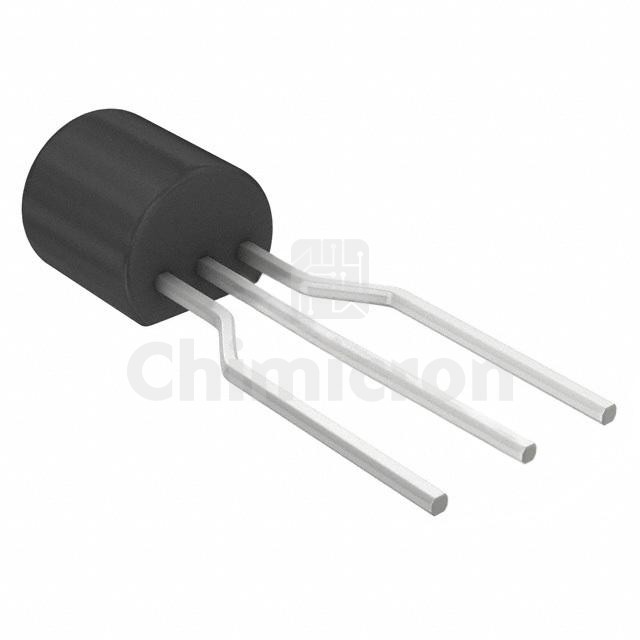

Image is for reference, please contact us to get the real picture

Manufacturer Part: 2N5060RLRAG

Manufacturer: Rochester Electronics

Description: SCR 30V 800MA TO92-3

Category: Discrete Semiconductor Products

Family: Thyristors - SCRs

Series: -

InStock: 50000

Datasheets Online: 2N5060RLRAG PDF

2N5060RLRAG Notice

Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2N5060RLRAG Rochester Electronics at chimicron.com. We have 50000 pieces of 2N5060RLRAG in stock available now. Submit an inquiry for 2N5060RLRAG or send an email to [email protected], we will contact you in 24 hours.

Inquiry

Company

Contact *

Phone *

Email *

Country

Quantity *

Target Price (USD)

Content

Captcha

Series:-
Package:Bulk
Part Status:Obsolete
Voltage - Off State:30 V
Voltage - Gate Trigger (Vgt) (Max):800 mV
Current - Gate Trigger (Igt) (Max):200 µA
Voltage - On State (Vtm) (Max):1.7 V
Current - On State (It (AV)) (Max):510 mA
Current - On State (It (RMS)) (Max):800 mA

Current - Hold (Ih) (Max):5 mA
Current - Off State (Max):10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):10A @ 60Hz
SCR Type:Sensitive Gate
Operating Temperature:-40°C ~ 110°C
Mounting Type:Through Hole
Package / Case:TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package:TO-92-3
