Name: AH3774-W-7
Brand: Zetex Semiconductors (Diodes Inc.)
SKU: AH3774-W-7
Rating: 5.0 (99 reviews)

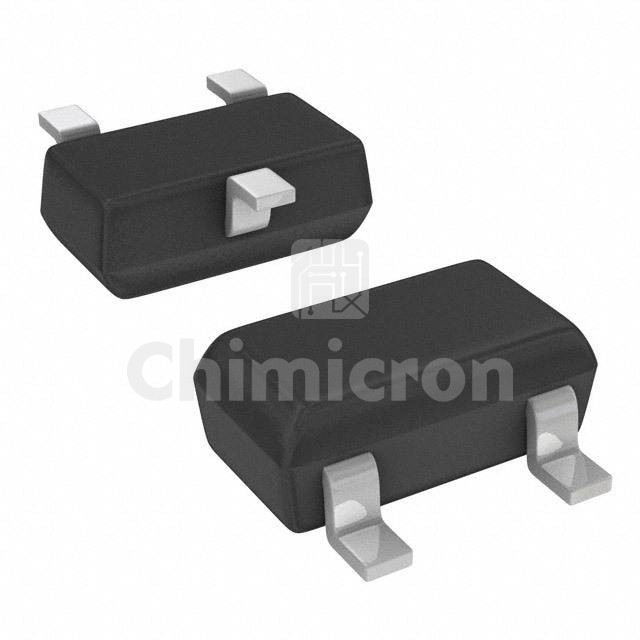

Image is for reference, please contact us to get the real picture

Manufacturer Part: AH3774-W-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MAGNETIC SWITCH LATCH SC59

Category: Sensors, Transducers

Family: Magnetic Sensors - Switches (Solid State)

Series: -

InStock: 66150

Datasheets Online: AH3774-W-7 PDF

AH3774-W-7 Notice

Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AH3774-W-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 66150 pieces of AH3774-W-7 in stock available now. Submit an inquiry for AH3774-W-7 or send an email to [email protected], we will contact you in 24 hours.

Inquiry

Company

Contact *

Phone *

Email *

Country

Quantity *

Target Price (USD)

Content

Captcha

Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Latch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:6mT Trip, -6mT Release
Test Condition:-40°C ~ 125°C
Voltage - Supply:3V ~ 28V

Current - Supply (Max):4mA
Current - Output (Max):60mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SC-59
Package / Case:TO-236-3, SC-59, SOT-23-3
