Name: TS420-600B
Brand: STMicroelectronics
SKU: TS420-600B
Rating: 5.0 (99 reviews)

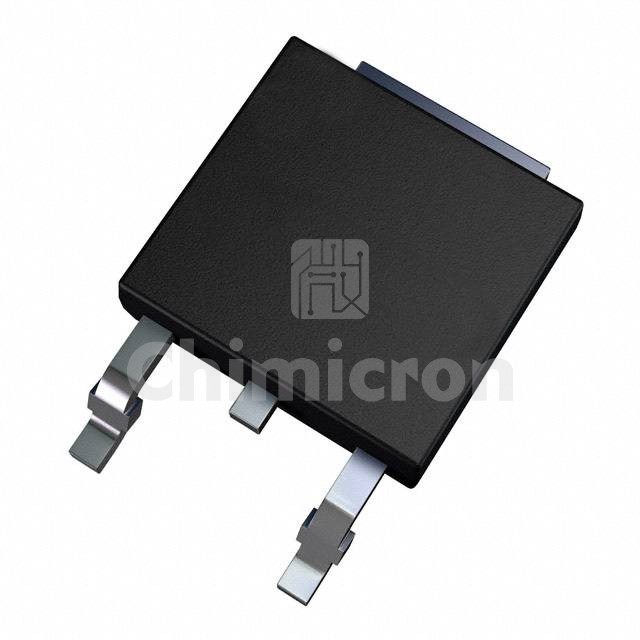

Image is for reference, please contact us to get the real picture

Manufacturer Part: TS420-600B

Manufacturer: STMicroelectronics

Description: SCR 600V 4A DPAK

Category: Discrete Semiconductor Products

Family: Thyristors - SCRs

Series: -

InStock: 0

Datasheets Online: TS420-600B PDF

TS420-600B Notice

Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TS420-600B STMicroelectronics at chimicron.com. We have 0 pieces of TS420-600B in stock available now. Submit an inquiry for TS420-600B or send an email to [email protected], we will contact you in 24 hours.

Inquiry

Company

Contact *

Phone *

Email *

Country

Quantity *

Target Price (USD)

Content

Captcha

Series:-
Package:Tube
Part Status:Active
Voltage - Off State:600 V
Voltage - Gate Trigger (Vgt) (Max):800 mV
Current - Gate Trigger (Igt) (Max):200 µA
Voltage - On State (Vtm) (Max):1.6 V
Current - On State (It (AV)) (Max):2.5 A
Current - On State (It (RMS)) (Max):4 A

Current - Hold (Ih) (Max):5 mA
Current - Off State (Max):5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):30A, 33A
SCR Type:Sensitive Gate
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:DPAK

Shipping	Delivery period	For in-stock parts, orders are estimated to ship out in 3 days. We ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below couriers you chose. DHL Express, 3-7 business days DHL eCommerce，12-22 business days FedEx International Priority, 3-7 business days EMS, 10-15 business days Registered Air Mail, 15-30 business days
	Shipping rates	Shipping rates for your order can be found in the shopping cart.
	Shipping option	We provide DHL, FedEx, UPS, EMS, SF Express, and Registered Air Mail international shipping.
	Shipping tracking	We will notify you by email with tracking number once order is shipped. You can also find the tracking number in order history.

Returning / Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment，please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping.
Returning / Warranty	Warranty	All purchases come with a 30-day money-back return policy, plus a 90-day warranty against any manufacturing defects. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation

Recommendation for You

Part Number	Description	Stock	Unit Price

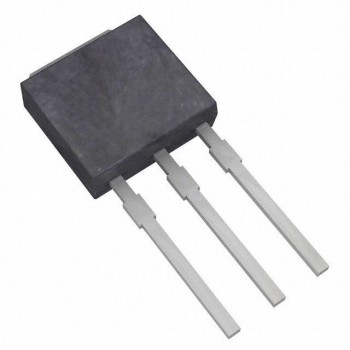

S6008VTP Wickmann / Littelfuse	SCR 600V 8A TO251	In Stock: 0	$0.82836

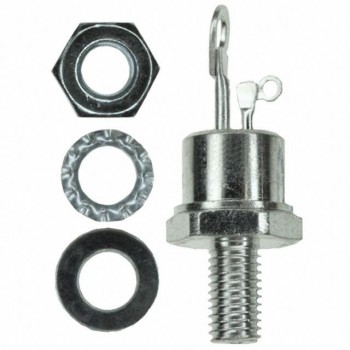

VS-22RIA120 Vishay General Semiconductor – Diodes Division	SCR 1.2KV 35A TO208AA	In Stock: 116	$21.69000
T507128054AQ Powerex, Inc.	SCR 1.2KV 125A TO94	In Stock: 0	$123.88467

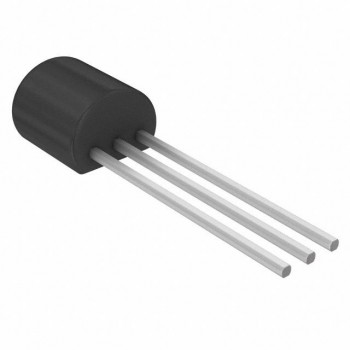

EC103M2AP Wickmann / Littelfuse	SCR 600V 800MA TO92	In Stock: 0	$0.40588
VS-ST330C08L1 Vishay General Semiconductor – Diodes Division	SCR 800V 1420A TO200AB	In Stock: 0	$122.89667
CR12CM-12A#P01 Rochester Electronics	SILICON CONTROLLED RECTIFIER	In Stock: 0	$1.00000

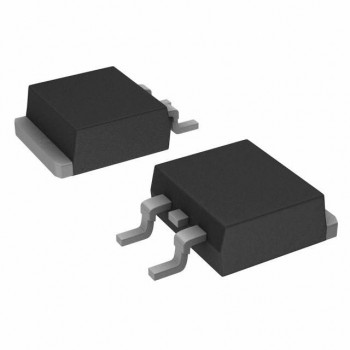

S4010DS3TP Wickmann / Littelfuse	SCR 400V 10A TO252	In Stock: 0	$0.75787
